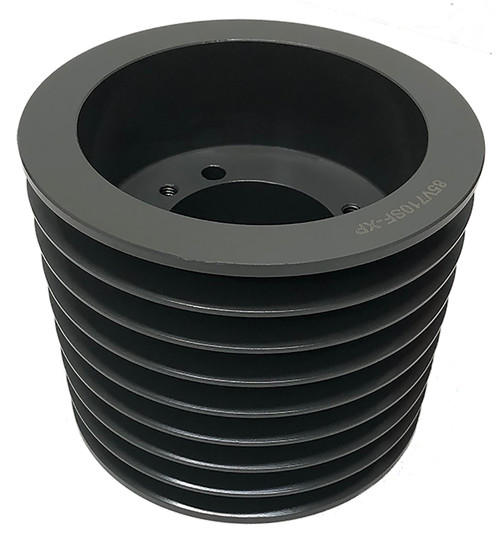

85V1870J, V-Belt Pulley

85V1870J

85V1870J, V-Belt Pulley, Cast Iron

Learn more about 85V1870J V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	85V1870J
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for J Bushing
Pitch Diameter (in)	18.600
Outside Diameter (in)	18.700
Face Width (in)	5.813
Min. Bore (in)	1.5
Unit System	Inch
Bushing	J
E (in)	0.125
L (in)	4.625
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	120.00
Part Number Cross Reference	QD8/5V18.70, 8 5V 1870 J, 8-5V1870.J, 85V1870J, 5V18.7-8-J PULLEY, 20180764, 8-5V18.70-J SHEAVE, 5V1878, 85V18.7, 5V18.7-8-J, 8/5V1870J, 8-5V18.70, 85V1870J, 8/5V1870J, 455409, 85V1870J
Grooves	8
