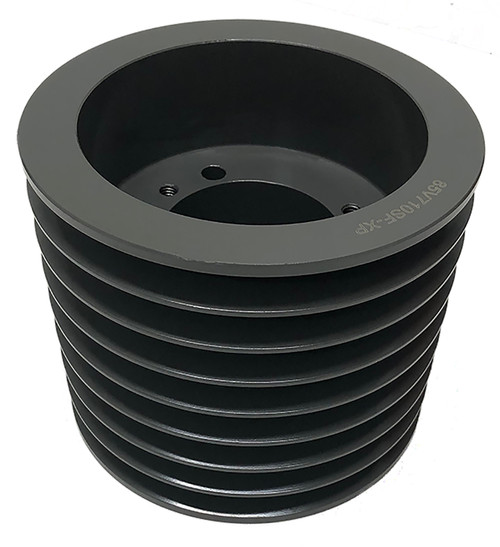

85V3150M, V-Belt Pulley

85V3150M

85V3150M, V-Belt Pulley, Cast Iron

Learn more about 85V3150M V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	85V3150M
Type	B-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for M Bushing
Pitch Diameter (in)	31.400
Outside Diameter (in)	31.500
Face Width (in)	5.813
Min. Bore (in)	2
Unit System	Inch
Bushing	M
E (in)	0.3437
L (in)	6.75
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	242.00
Part Number Cross Reference	QD8/5V31.50, 8 5V 3150 M, 8-5V3150.M, 85V3150M, 5V31.5-8-M, 20180804, 8-5V31.50-M SHEAVE, 5V3158, 85V31.5, 5V31.5-8-M, 8/5V3150M, 8-5V31.50, 85V3150M, 8/5V3150M, 455413, 85V3150M
Grooves	8
