85V5000M, V-Belt Pulley

85V5000M, 5V508, 8-5V50.0, 8/5V5000M

85V5000M

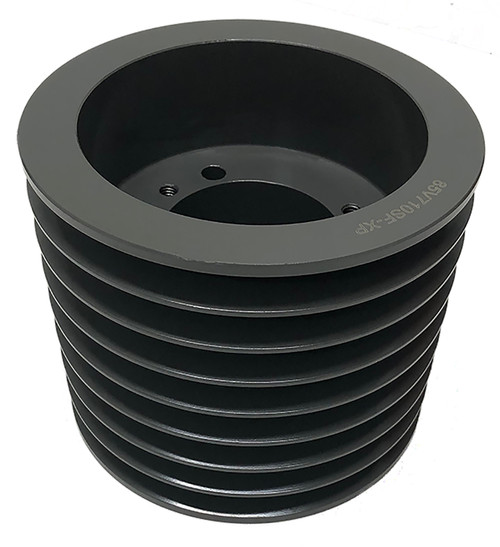

85V5000M, V-Belt Pulley, Cast Iron

Learn more about 85V5000M V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 85V5000M
Type B-3
Material Cast Iron
Bore Type QD
Bore Description Bored for M Bushing
Pitch Diameter (in) 49.900
Outside Diameter (in) 50.000
Face Width (in) 5.813
Unit System Inch
Bushing M
E (in) 0.3437
L (in) 6.75
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 408.00
Part Number Cross Reference QD8/5V50.00, 8 5V 5000 M, 8-5V5000.M, 85V5000M, 5V50.0-8-M PULLEY, 20180852, 8-5V50.00-M SHEAVE, 5V5008, 85V50.0, 5V50.0-8-M, 8/5V5000M, 8-5V50.00, 85V5000M, 8/5V5000M, 455415, 85V5000M
Grooves 8

Related Products

Comparable to: QD8/5V50.00, 8 5V 5000 M, 8-5V5000.M, 85V5000M, 5V50.0-8-M PULLEY, 20180852, 8-5V50.00-M SHEAVE, 5V5008, 85V50.0, 5V50.0-8-M, 8/5V5000M, 8-5V50.00, 85V5000M, 8/5V5000M, 455415, 85V5000M
