88V1900M, V-Belt Pulley

88V1900M, QD8/8V19.

88V1900M

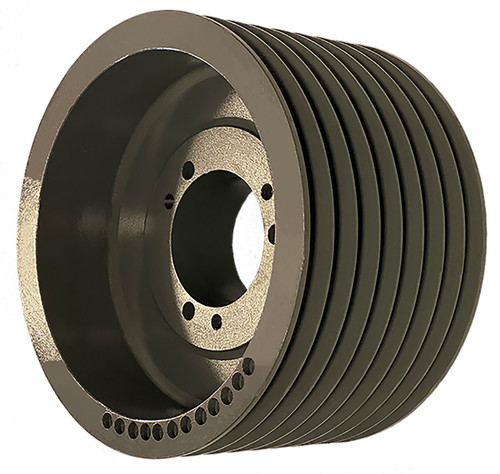

88V1900M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V1900M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V1900M
Type A-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for M Bushing
Pitch Diameter (in) 18.800
Outside Diameter (in) 19.000
Face Width (in) 9.375
Min. Bore (in) 2.000
Unit System Inch
Bushing M
E (in) 2 11/32
L (in) 6 3/4
M (in) 9/32
MOQ 1
Weight (lb) 250.00
Part Number Cross Reference QD8/8V19.00, 8 8V 1900 M, 8-8V1900.M, 8V19.0-8-M PULLEY, 20180970, 8/8V19.0–M, 88V19.0, 8V19.0-8-M, 8/8V1900M, 455465, 88V1900M
Grooves 8

Related Products

Comparable to: QD8/8V19.00, 8 8V 1900 M, 8-8V1900.M, 8V19.0-8-M PULLEY, 20180970, 8/8V19.0–M, 88V19.0, 8V19.0-8-M, 8/8V1900M, 455465, 88V1900M
