88V2000M, V-Belt Pulley

88V2000M, QD8/8V20.

88V2000M

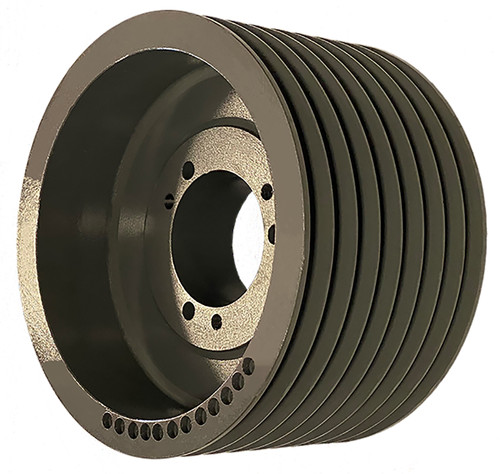

88V2000M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V2000M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V2000M
Type A-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for M Bushing
Pitch Diameter (in) 19.800
Outside Diameter (in) 20.000
Face Width (in) 9.375
Min. Bore (in) 2.000
Unit System Inch
Bushing M
E (in) 2 11/32
L (in) 6 3/4
M (in) 9/32
MOQ 1
Sheave Type 8V
For Belt Type 8V
Weight (lb) 265.00
Part Number Cross Reference QD8/8V20.00, 8 8V 2000 M, 8-8V2000.M, 8V20.0-8-M PULLEY, 20180976, 8/8V20.0–M, 88V20.0, 8V20.0-8-M, 8/8V2000M, 455466, 88V2000M
Grooves 8

Related Products

Comparable to: QD8/8V20.00, 8 8V 2000 M, 8-8V2000.M, 8V20.0-8-M PULLEY, 20180976, 8/8V20.0–M, 88V20.0, 8V20.0-8-M, 8/8V2000M, 455466, 88V2000M
