88V2240M, V-Belt Pulley

88V2240M, QD8/8V22.

88V2240M

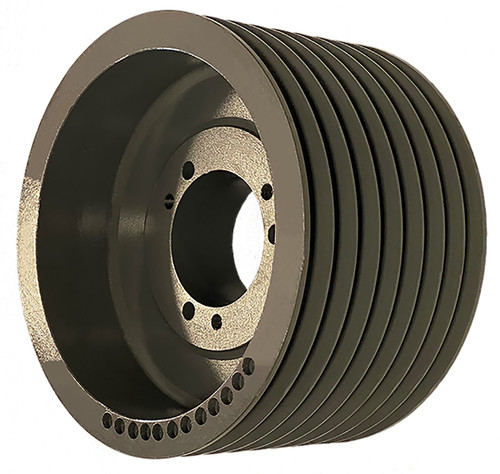

88V2240M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V2240M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V2240M
Type A-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for M Bushing
Pitch Diameter (in) 22.200
Outside Diameter (in) 22.400
Face Width (in) 9.375
Min. Bore (in) 2.000
Unit System Inch
Bushing M
E (in) 2 11/32
L (in) 6 3/4
M (in) 9/32
MOQ 1
Weight (lb) 295.00
Part Number Cross Reference QD8/8V22.40, 8 8V 2240 M, 8-8V2240.M, 8V22.4-8-M PULLEY, 20180988, 8/8V22.4–M, 88V22.4, 8V22.4-8-M, 8/8V2240M, 455468, 88V2240M
Grooves 8

Related Products

Comparable to: QD8/8V22.40, 8 8V 2240 M, 8-8V2240.M, 8V22.4-8-M PULLEY, 20180988, 8/8V22.4–M, 88V22.4, 8V22.4-8-M, 8/8V2240M, 455468, 88V2240M
