88V4000N, V-Belt Pulley

88V4000N, QD8/8V40.

88V4000N

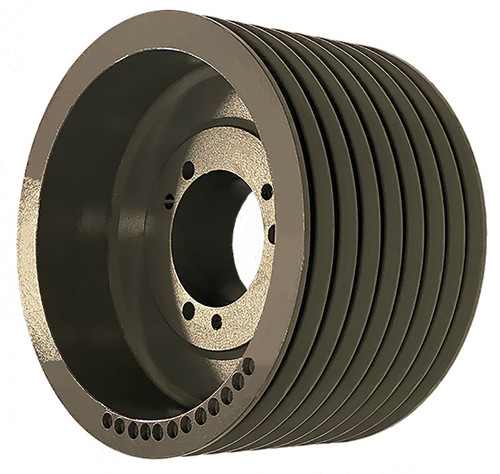

88V4000N, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V4000N to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V4000N
Type A-3
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 39.800
Outside Diameter (in) 40.000
Face Width (in) 9.375
Min. Bore (in) 2.4375
Unit System Inch
Bushing N
E (in) 3/16
L (in) 8 1/8
M (in) 1 1/16
MOQ 1
Weight (lb) 530.00
Part Number Cross Reference QD8/8V40.00, 8 8V 4000 N, 8-8V4000.N, 8V40.0-8-N PULLEY, 20181012, 8/8V40.0–N, 88V40.0, 8V40.0-8-N, 8/8V4000N, 455470, 88V4000N
Grooves 8

Related Products

Comparable to: QD8/8V40.00, 8 8V 4000 N, 8-8V4000.N, 8V40.0-8-N PULLEY, 20181012, 8/8V40.0–N, 88V40.0, 8V40.0-8-N, 8/8V4000N, 455470, 88V4000N

Documentation

For custom parts click here
REACH Certification
RoHS Certification
