88V4450P, V-Belt Pulley

88V4450P, QD8/8V44.

Product Details for 88V4450P

Comparable to: QD8/8V44.50, 8 8V 4450 P, 8-8V4450.P, 8V44.5-8-P PULLEY, 20181018, 8/8V44.5–P, 88V44.5, 8V44.5-8-P, 455470

Click to Enlarge

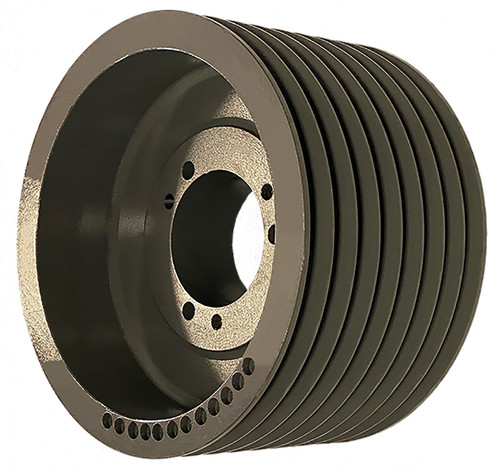

88V4450P, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V4450P in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V4450P
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 44.300
Outside Diameter (in) 44.500
Face Width (in) 9.375
Min. Bore (in) 2.9375
Unit System Inch
Bushing P
E (in) 1/4
L (in) 9 3/8
M (in) 1/4
MOQ 1
Weight (lb) 610.00
Part Number Cross Reference QD8/8V44.50, 8 8V 4450 P, 8-8V4450.P, 8V44.5-8-P PULLEY, 20181018, 8/8V44.5–P, 88V44.5, 8V44.5-8-P, 455470
Grooves 8
Set Screw Quantity 0
