88V5300P, V-Belt Pulley

88V5300P, QD8/8V53.

88V5300P

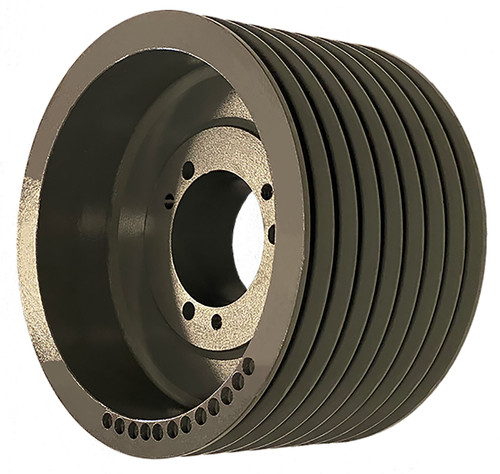

88V5300P, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 88V5300P to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 88V5300P
Type B-3
Material Cast Iron
Bore Type QD
Bore Description Bored for P Bushing
Pitch Diameter (in) 52.800
Outside Diameter (in) 53.000
Face Width (in) 9.375
Min. Bore (in) 2.9375
Unit System Inch
Bushing P
E (in) 0.25
L (in) 9.375
M (in) 0.25
MOQ 1
Sheave Type 8V
For Belt Type 8V
Weight (lb) 795.00
Part Number Cross Reference QD8/8V53.00, 8 8V 5300 P, 8-8V5300.P, 8V53.0-8-P, 20181024, 8-8V53.00-P SHEAVE, 8V5308, 88V53.0, 8V53.0-8-P, 8-8V53.00, 88V5300P, 455471, 88V5300P
Grooves 8

Related Products

Comparable to: QD8/8V53.00, 8 8V 5300 P, 8-8V5300.P, 8V53.0-8-P, 20181024, 8-8V53.00-P SHEAVE, 8V5308, 88V53.0, 8V53.0-8-P, 8-8V53.00, 88V5300P, 455471, 88V5300P
