890-D5M-15, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

890-D5M-15, TP890-5M-15

890-D5M-15

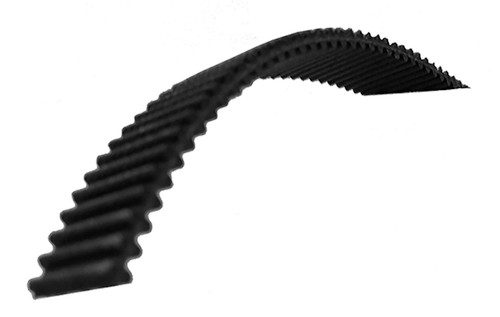

890-D5M-15, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided

Learn more about 890-D5M-15 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number 890-D5M-15
Teeth 178
Tooth Style HTD5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 15.00
Pitch Length (mm) 890.00
Construction Neoprene
Reinforcement Fiberglass
MOQ 1
Weight (lb) 0.14
Part Number Cross Reference A 6R25MD178150, TP890-5M-15, 890-D5M-15, 890-D5M-15, 890-D5M-15

Comparable to: A 6R25MD178150, TP890-5M-15, 890-D5M-15, 890-D5M-15, 890-D5M-15

Documentation

General Characteristics
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
