90-2P06-6A4, Timing Pulley

90-2P06-6A4 - Aluminum Powerhouse® Pulleys

Product Details for 90-2P06-6A4

Comparable to: A 6A51-090NF0610, A6A51-090NF0610, 2MR-90S-06, 78426057, 90-2GT06-2A X 5/16

Click to Enlarge

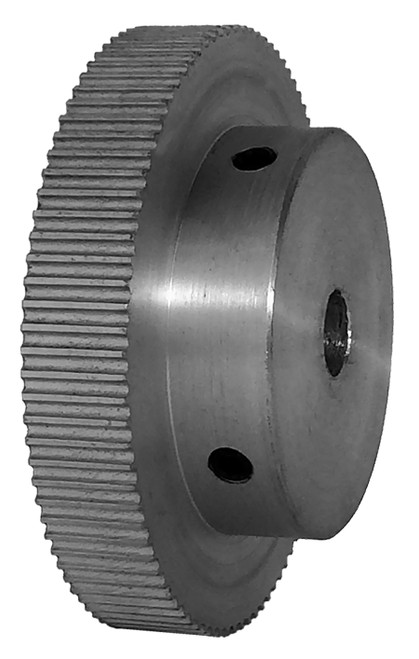

90-2P06-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 90-2P06-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 90-2P06-6A4
Teeth 90
Tooth Style 2P
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.236
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.23
Part Number Cross Reference A 6A51-090NF0610, A6A51-090NF0610, 2MR-90S-06, 78426057, 90-2GT06-2A X 5/16
Set Screw Quantity 2
