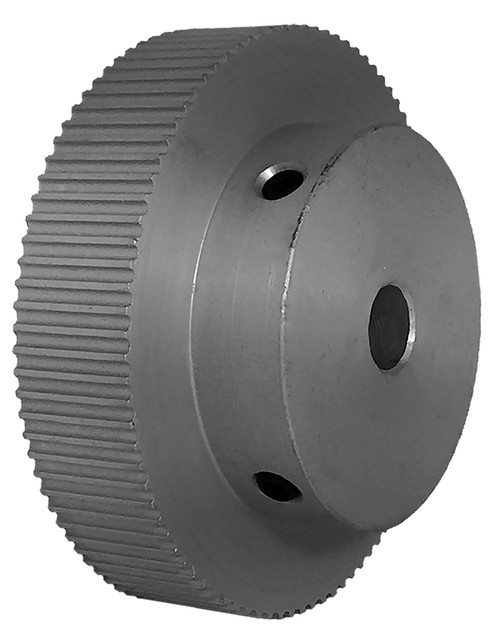

90-2P09-6A4, Timing Pulley

90-2P09-6A4 - Aluminum Powerhouse® Pulleys

Product Details for 90-2P09-6A4

Comparable to: 90-2P09-6A4, A 6A51-090NF0910, 2MR-90S-09, 78426066

90-2P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 90-2P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 90-2P09-6A4
Teeth 90
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.236
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.500
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.27
Part Number Cross Reference 90-2P09-6A4, A 6A51-090NF0910, 2MR-90S-09, 78426066
