915-D3M-09, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

915-D3M-09, TP915-3M-09

915-D3M-09

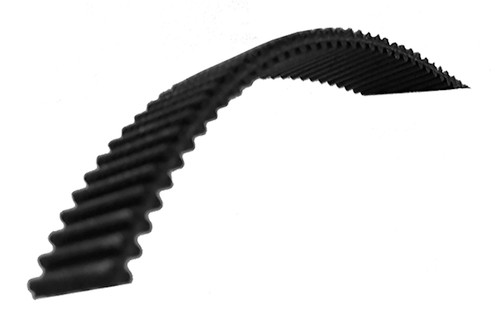

915-D3M-09, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Learn more about 915-D3M-09 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number	915-D3M-09
Teeth	305
Tooth Style	HTD3mm
Unit System	Metric
Belt Type	Double Sided
Belt Width (mm)	9.00
Pitch Length (mm)	915.00
Construction	Neoprene
Reinforcement	Fiberglass
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	A 6R23MD305090, TP915-3M-09, 915-D3M-09, 915-D3M-09, 915-D3M-09

Comparable to: A 6R23MD305090, TP915-3M-09, 915-D3M-09, 915-D3M-09, 915-D3M-09

Documentation

General Characteristics

Drive Alignment Guide

For custom parts click here

REACH Certification

RoHS Certification
