950-D5M-25 Powerhouse™ HTD® Belts

950-D5M-25, A 6R25MD190250, A6R25MD190250, TP950-5M-25

Product Details for 950-D5M-25

Comparable to: 950-D5M-25, A 6R25MD190250, A6R25MD190250, TP950-5M-25

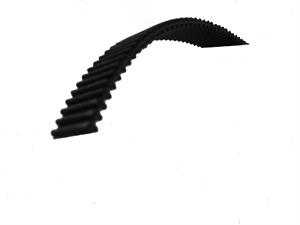

950-D5M-25, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 950-D5M-25
Teeth 190
Tooth Style HTD 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 25.00
Pitch Length (mm) 950.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.24
Part Number Cross Reference 950-D5M-25, A 6R25MD190250, A6R25MD190250, TP950-5M-25

Documentation

Download Catalog 2015_BBMAN_CATALOG_224.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 950-D5M-25_REACH_cert
RoHS Certification 950-D5M-25_RoHS_cert
