96LH050, Timing Pulley

96LH050 - Cast Iron Imperial Pitch Pulleys

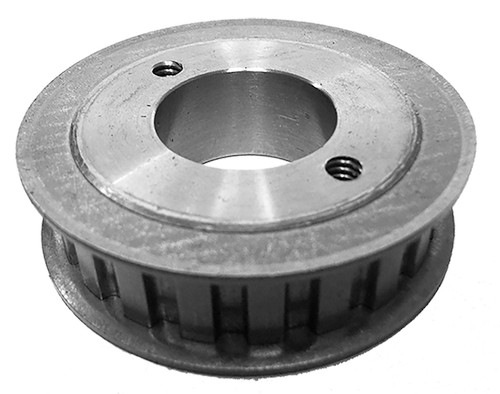

96LH050

96LH050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

96LH050, Timing Pulley, Cast Iron

Learn more about 96LH050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 96LH050
Teeth 96
Tooth Style L
For Belt Width (in) 0.5000
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 11.459
Outside Diameter (in) 11.429
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 291.00
O.D. (mm) 290.30
MOQ 1
Weight (lb) 7.56
Part Number Cross Reference 96LH050, 96LH050, 96LH050
