96LH100, Timing Pulley

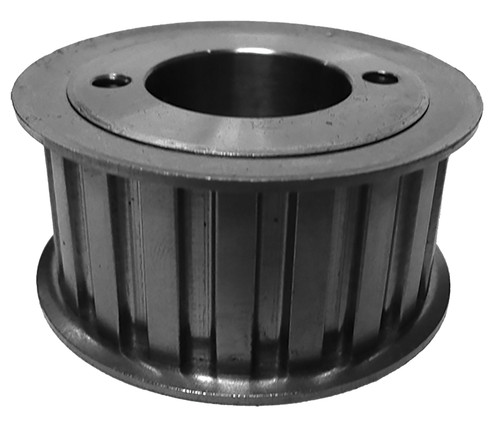

96LH100 - Cast Iron Imperial Pitch Pulleys

96LH100

96LH100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

96LH100, Timing Pulley, Cast Iron

Learn more about 96LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 96LH100
Teeth 96
Tooth Style L
For Belt Width (in) 1.0000
Type 18
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 11.459
Outside Diameter (in) 11.429
Face Width (in) 1.250
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 291.00
O.D. (mm) 290.30
MOQ 1
Weight (lb) 9.96
Part Number Cross Reference 96LH100, 96LH100, 96LH100
