975-D5M-25, Double Sided Timing Belt

All belts are "cut-to-width" per order. Please allow time to process. If the inventory is ZERO, please call 877.787.4022 for lead time.

975-D5M-25, TP975-5M-25

975-D5M-25

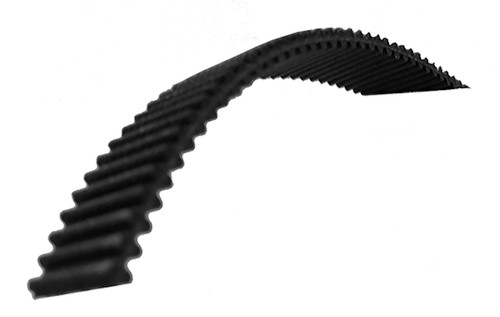

975-D5M-25, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided

Learn more about 975-D5M-25 Timing Belts and B&B Manufacturing, Inc.

Specifications

Product Number 975-D5M-25
Teeth 195
Tooth Style HTD5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 25.00
Pitch Length (mm) 975.00
Construction Neoprene
Reinforcement Fiberglass
MOQ 1
Weight (lb) 0.26
Part Number Cross Reference A 6R25MD195250, TP975-5M-25, 975-D5M-25, 975-D5M-25, 975-D5M-25

Comparable to: A 6R25MD195250, TP975-5M-25, 975-D5M-25, 975-D5M-25, 975-D5M-25
