AK104H, V-Belt Pulley

AK104H, AK104-QT, 20179566, MAL104

AK104H

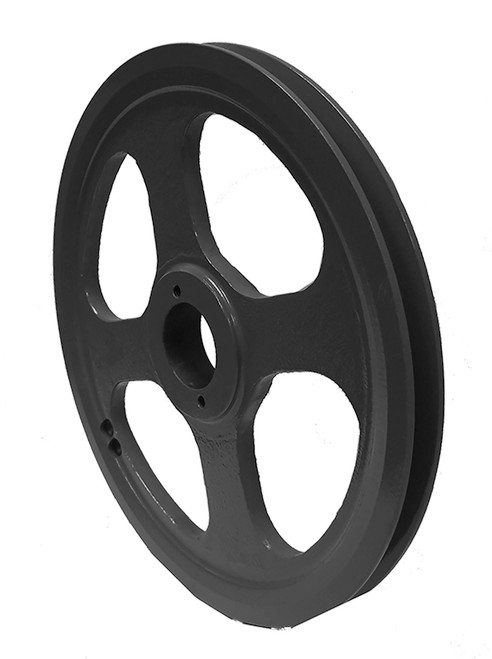

AK104H, V-Belt Pulley, Cast Iron

Learn more about AK104H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK104H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 10.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 10.000
Pitch Dia. "3L" 9.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 4.50
Part Number Cross Reference AK104QT, AK104H, AK104-QT, 20179566, AK104H SHEAVE, AK104, AK104-QT, AK104H, MAL102, AK104QT, AK104H, AK104H, MAL102, AK104H
Grooves 1

Related Products

Comparable to: AK104QT, AK104H, AK104-QT, 20179566, AK104H SHEAVE, AK104, AK104-QT, AK104H, MAL102, AK104QT, AK104H, AK104H, MAL102, AK104H
