AK64H, V-Belt Pulley

AK64H, AK64-QT, 20179587, MAL64

AK64H

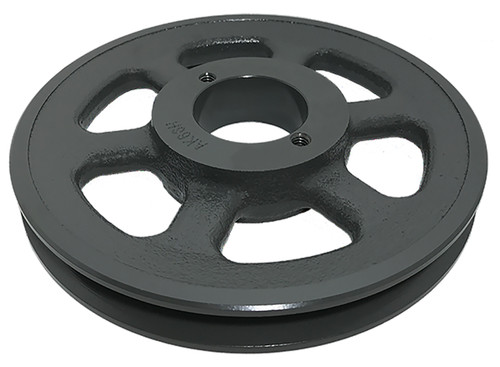

AK64H, V-Belt Pulley, Cast Iron

Learn more about AK64H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK64H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 6.250
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "3L" 5.660
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 2.70
Part Number Cross Reference AK64QT, AK64H, AK64-QT, 20179587, AK64, AK64-QT, AK64H, MAL63, AK64QT, AK64H, AK64H, AK64H
Grooves 1

Related Products

Comparable to: AK64QT, AK64H, AK64-QT, 20179587, AK64, AK64-QT, AK64H, MAL63, AK64QT, AK64H, AK64H, AK64H
