AK66H, V-Belt Pulley

AK66H, AK66-QT, 20179588, MAL66

AK66H

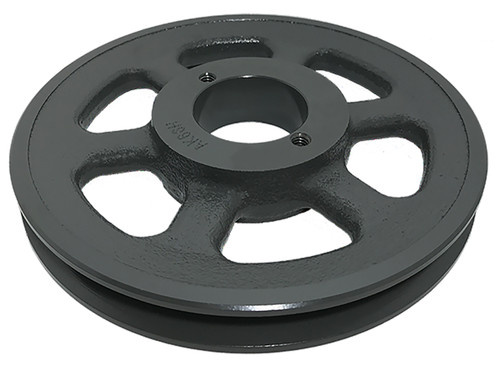

AK66H, V-Belt Pulley, Cast Iron

Learn more about AK66H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK66H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) Bored for H Bushing
Outside Diameter (in) 6.450
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 6.200
Pitch Dia. "3L" 5.860
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 2.80
Part Number Cross Reference AK66QT, AK66H, AK66-QT, 20179588, AK66, AK66-QT, AK66H, MAL65, AK66QT, AK66H, AK66H, AK66H
Grooves 1

Related Products

Comparable to: AK66QT, AK66H, AK66-QT, 20179588, AK66, AK66-QT, AK66H, MAL65, AK66QT, AK66H, AK66H, AK66H
