AK71H, V-Belt Pulley

AK71H, AK71-QT, 20179590, MAL71

AK71H

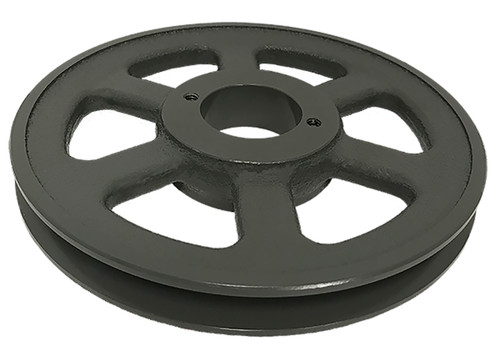

AK71H, V-Belt Pulley, Cast Iron

Learn more about AK71H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number AK71H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 6.950
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 6.700
Pitch Dia. "3L" 6.360
Sheave Type AK
For Belt Type 4L, 3L, or A
Weight (lb) 3.10
Part Number Cross Reference AK71QT, AK71H, AK71-QT, 20179590, AK71, AK71-QT, AK71H, MAL70, AK71QT, AK71H, AK71H, AK71H
Grooves 1

Related Products

Comparable to: AK71QT, AK71H, AK71-QT, 20179590, AK71, AK71-QT, AK71H, MAL70, AK71QT, AK71H, AK71H, AK71H
