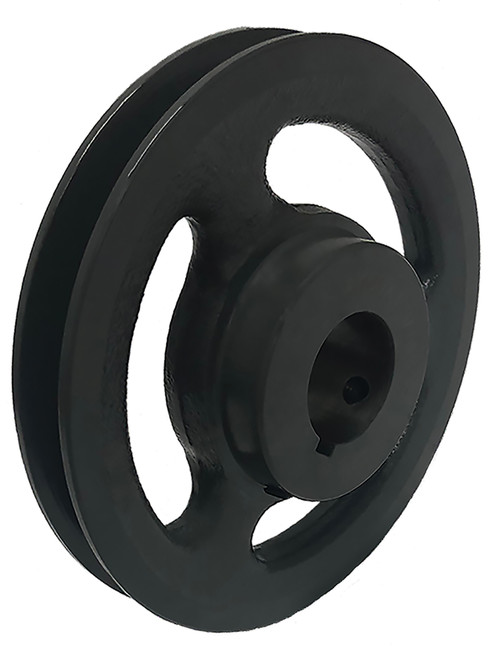

AK71x1, V-Belt Pulley

AK71x1

AK71x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries AK71x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	AK71x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	6.950
Face Width (in)	0.750
Overall Length (in)	1.469
Hub Diameter (in)	2.375
Min. Bore (in)	0.625
Unit System	Inch
MOQ	1
Pitch Dia. "A"	6.700
Pitch Dia. "3L"	6.360
Sheave Type	AK
For Belt Type	4L, 3L, or A
Weight (lb)	3.70
Part Number Cross Reference	AK71 1, AK71x1, AK71-1 PULLEY, 20180093, AK71 X 1 SHEAVE, AK711, AK71-1, MA70X1, AK71-1, AK71x1, AK71-1, MA70X1, AK71x1
Grooves	1
Set Screw Quantity	1
