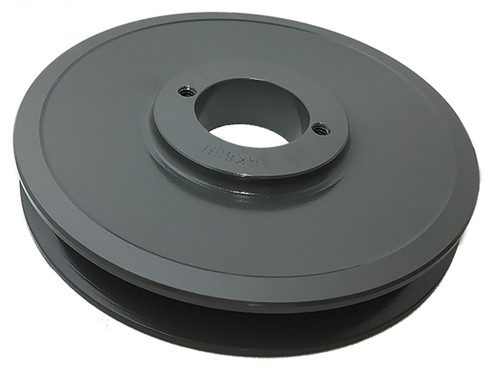

BK100H, V-Belt Pulley

BK100H, BK100-QT, 20179597, MBL97

BK100H

BK100H, V-Belt Pulley, Cast Iron

Learn more about BK100H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK100H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) Bored for H Bushing
Outside Diameter (in) 9.750
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 9.000
Pitch Dia. "B" 9.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.20
Part Number Cross Reference BK100QT, BK100H, BK100-QT, 20179597, BK100, BK100-QT, BK100H, 00754440, MBL98, BK100QT, BK100H, BK100H, BK100H
Grooves 1

Related Products

Comparable to: BK100QT, BK100H, BK100-QT, 20179597, BK100, BK100-QT, BK100H, 00754440, MBL98, BK100QT, BK100H, BK100H, BK100H

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
