BK105H, V-Belt Pulley

BK105H, BK105-QT, 20179598, MBL102

BK105H

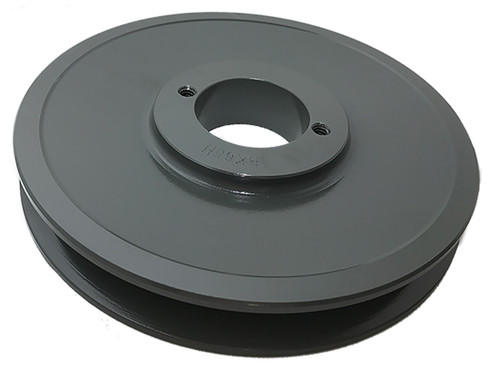

BK105H, V-Belt Pulley, Cast Iron

Learn more about BK105H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK105H
Type 3
Material Cast Iron
Bore Type QD
Bore (in) Bored for H Bushing
Outside Diameter (in) 10.250
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 9.500
Pitch Dia. "B" 9.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.50
Part Number Cross Reference BK105QT, BK105H, BK105-QT, 20179598, BK105, BK105-QT, BK105H, 00754457, MBL103, BK105QT, BK105H, BK105H, BK105H
Grooves 1

Related Products

Comparable to: BK105QT, BK105H, BK105-QT, 20179598, BK105, BK105-QT, BK105H, 00754457, MBL103, BK105QT, BK105H, BK105H, BK105H
