BK105x1, V-Belt Pulley

BK105x1

BK105x1

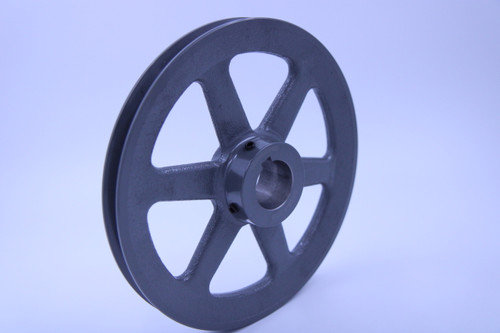

BK105x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK105x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK105x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 10.250
Face Width (in) 0.875
Overall Length (in) 1.531
Hub Diameter (in) 2.375
Min. Bore (in) 1.000
Unit System Inch
MOQ 1
Pitch Dia. "A" 9.500
Pitch Dia. "B" 9.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 7.80
Part Number Cross Reference BK105 1, BK105-1 PULLEY, 20180148, 127271, BK1051, BK105-1, MB103x1, BK105-1, BK105-1, BK105x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: BK105 1, BK105-1 PULLEY, 20180148, 127271, BK1051, BK105-1, MB103x1, BK105-1, BK105-1, BK105x1
