BK130H, V-Belt Pulley

BK130H, BK130-QT, 20179602, MBL127

BK130H

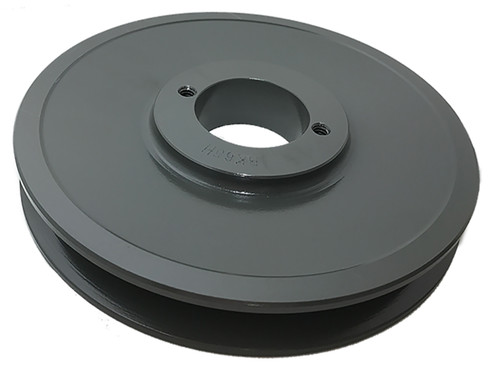

BK130H, V-Belt Pulley, Cast Iron

Learn more about BK130H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK130H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 12.750
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 12.000
Pitch Dia. "B" 12.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 6.90
Part Number Cross Reference BK130QT, BK130H, BK130-QT, 20179602, BK130H SHEAVE, BK130, BK130-QT, BK130H, 00754499, MBL127, BK130QT, BK130H, BK130H, MBL127, BK130H
Grooves 1

Related Products

Comparable to: BK130QT, BK130H, BK130-QT, 20179602, BK130H SHEAVE, BK130, BK130-QT, BK130H, 00754499, MBL127, BK130QT, BK130H, BK130H, MBL127, BK130H
