BK130x1, V-Belt Pulley

BK130x1

BK130x1

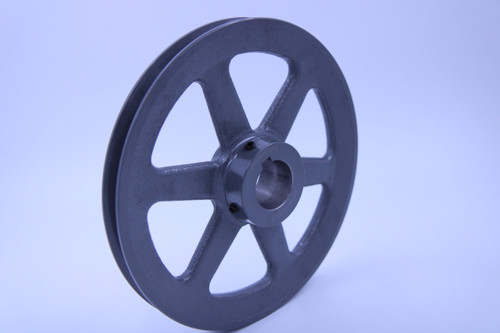

BK130x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK130x1 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK130x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 inch Finished Bore
Outside Diameter (in) 12.750
Face Width (in) 0.875
Overall Length (in) 1.531
Hub Diameter (in) 2.375
Min. Bore (in) 0.750
Unit System Inch
MOQ 1
Pitch Dia. "A" 12.000
Pitch Dia. "B" 12.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 10.40
Part Number Cross Reference BK130 1, BK130x1, BK130-1 PULLEY, 20180165, 120996, BK1301, BK130-1, MB128x1, BK130-1, BK130-1, BK130x1
Grooves 1
Set Screw Quantity 1

Related Products

Comparable to: BK130 1, BK130x1, BK130-1 PULLEY, 20180165, 120996, BK1301, BK130-1, MB128x1, BK130-1, BK130-1, BK130x1
