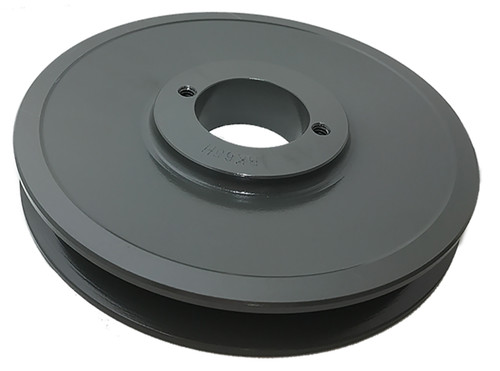

BK140H, V-Belt Pulley

BK140H

BK140H, V-Belt Pulley, Cast Iron

Learn more about BK140H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	BK140H
Type	3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for H Bushing
Outside Diameter (in)	13.750
Face Width (in)	0.875
Overall Length (in)	1.563
Min. Bore (in)	0.375
Unit System	Inch
Bushing	H
MOQ	1
Pitch Dia. "A"	13.000
Pitch Dia. "B"	13.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	8.50
Part Number Cross Reference	BK140QT, BK140H, BK140-QT, 20179603, BK140H SHEAVE, BK140, BK140-QT, BK140H, 00754507, MBL137, BK140QT, BK140H, BK140H, MBL137, BK140H
Grooves	1
