BK190x1, V-Belt Pulley

Product Details for BK190x1

Comparable to: BK190 1., BK190-1 PULLEY, 20180182, BK1901, BK190-1, MB188x1

Click to Enlarge

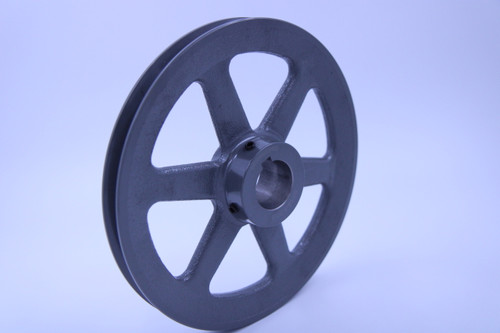

BK190x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK190x1 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number BK190x1
Type 3
Material Cast Iron
Bore Type Finished Bore
Bore (in) 1 inch Finished Bore
Outside Diameter (in) 18.750
Face Width (in) 0.875
Overall Length (in) 1.531
Hub Diameter (in) 2.375
Min. Bore (in) 1.000
MOQ 1
Pitch Dia. "A" 18.000
Pitch Dia. "B" 18.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 21.30
Part Number Cross Reference BK190 1., BK190-1 PULLEY, 20180182, BK1901, BK190-1, MB188x1
Grooves 1
Set Screw Quantity 1
