BK34H, V-Belt Pulley

BK34H, BK34-QT, 20179609, MBL35

Product Details for BK34H

Comparable to: BK34H, BK34-QT, 20179609, BK34, 00754242, MBL35, BK34QT

Click to Enlarge

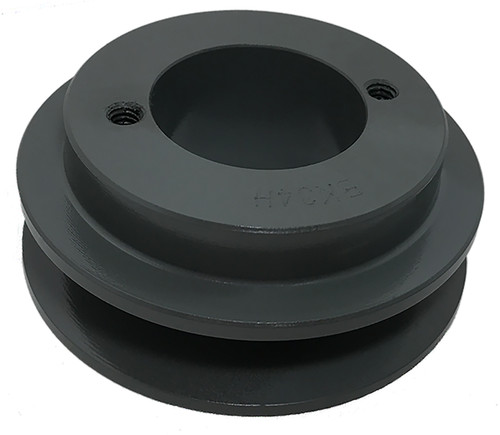

BK34H, V-Belt Pulley, Cast Iron

Learn more about BK34H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK34H
Type 1
Material Cast Iron
Bore Type QD
Bore (in) H
Outside Diameter (in) 3.550
Face Width (in) 0.875
Overall Length (in) 1.938
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 2.800
Pitch Dia. "B" 3.200
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 1.60
Part Number Cross Reference BK34H, BK34-QT, 20179609, BK34, 00754242, MBL35, BK34QT
Grooves 1
