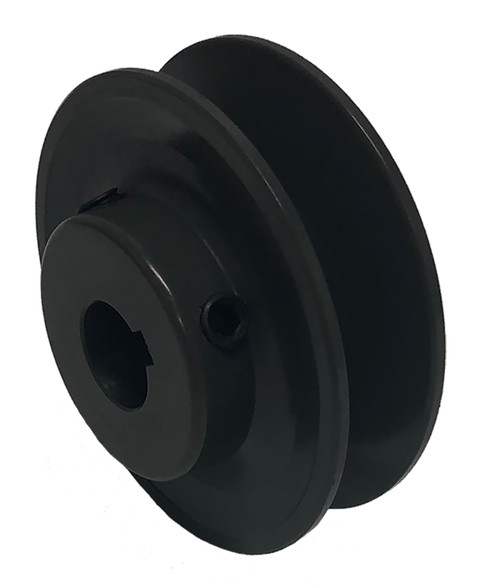

BK50x1, V-Belt Pulley

BK50x1

BK50x1, V-Belt Pulley, Cast Iron

B&B Manufacturing carries BK50x1 to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	BK50x1
Type	3
Material	Cast Iron
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 inch Finished Bore
Outside Diameter (in)	4.750
Face Width (in)	0.875
Overall Length (in)	1.281
Hub Diameter (in)	1.875
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Pitch Dia. "A"	4.000
Pitch Dia. "B"	4.400
Sheave Type	BK
For Belt Type	4L, 5L, A, or B
Weight (lb)	2.50
Part Number Cross Reference	BK50 1, BK50x1, BK50-1 PULLEY, 20180275, BK50 X 1 SHEAVE, BK501, BK50-1, 007596460, MB48X1, BK50-1, BK50x1, BK50-1, MB48X1, BK50x1
Grooves	1
Set Screw Quantity	1
