BK67H, V-Belt Pulley

BK67H, BK67-QT, 20179621, MBL64

BK67H

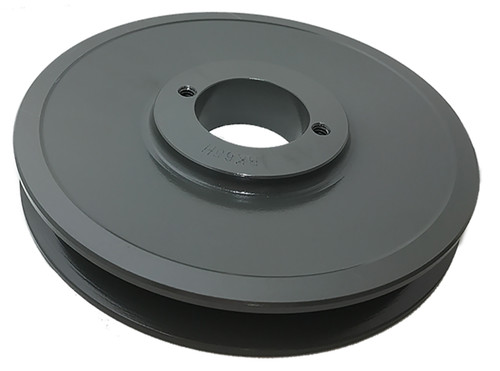

BK67H, V-Belt Pulley, Cast Iron

Learn more about BK67H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK67H
Type 2
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 6.450
Face Width (in) 0.875
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 5.700
Pitch Dia. "B" 6.100
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.90
Part Number Cross Reference BK67QT, BK67H, BK67-QT, 20179621, BK67, BK67-QT, BK67H, 00754366, MBL65, BK67QT, BK67H, BK67H, BK67H
Grooves 1

Related Products

Comparable to: BK67QT, BK67H, BK67-QT, 20179621, BK67, BK67-QT, BK67H, 00754366, MBL65, BK67QT, BK67H, BK67H, BK67H
