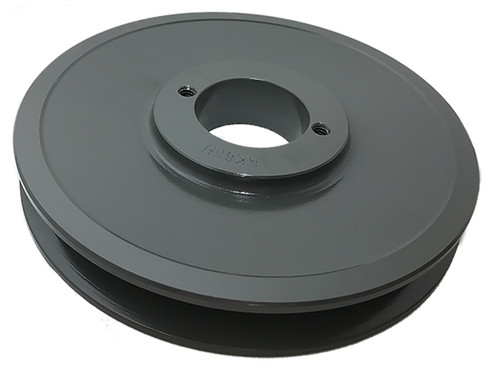

BK70H, V-Belt Pulley

BK70H, BK70-QT, 20179622, MBL67

BK70H

BK70H, V-Belt Pulley, Cast Iron

Learn more about BK70H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK70H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 6.750
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "B" 6.400
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 2.80
Part Number Cross Reference BK70QT, BK70H, BK70-QT, 20179622, BK70H SHEAVE, BK70, BK70-QT, BK70H, 00754374, MBL67, BK70QT, BK70H, BK70H, MBL67, BK70H
Grooves 1

Related Products

Comparable to: BK70QT, BK70H, BK70-QT, 20179622, BK70H SHEAVE, BK70, BK70-QT, BK70H, 00754374, MBL67, BK70QT, BK70H, BK70H, MBL67, BK70H
