BK95H, V-Belt Pulley

BK95H, BK95-QT, 20179629, MBL92

BK95H

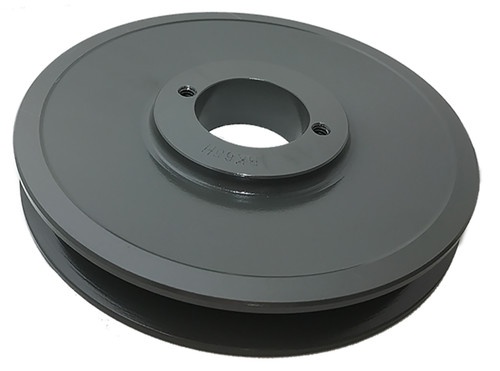

BK95H, V-Belt Pulley, Cast Iron

Learn more about BK95H V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number BK95H
Type 3
Material Cast Iron
Bore Type QD
Bore Description Bored for H Bushing
Outside Diameter (in) 9.250
Face Width (in) 0.875
Overall Length (in) 1.563
Min. Bore (in) 0.375
Unit System Inch
Bushing H
MOQ 1
Pitch Dia. "A" 8.500
Pitch Dia. "B" 8.900
Sheave Type BK
For Belt Type 4L, 5L, A, or B
Weight (lb) 5.80
Part Number Cross Reference BK95QT, BK95H, BK95-QT, 20179629, BK95H SHEAVE, BK95, BK95-QT, BK95H, 00754435, MBL92, BK95QT, BK95H, BK95H, MBL92, BK95H
Grooves 1

Related Products

Comparable to: BK95QT, BK95H, BK95-QT, 20179629, BK95H SHEAVE, BK95, BK95-QT, BK95H, 00754435, MBL92, BK95QT, BK95H, BK95H, MBL92, BK95H
