F144-14M40-E, Timing Pulley

F144-14M40-E - Cast Iron Powerhouse®HTD® Pulleys

Product Details for F144-14M40-E

Comparable to: F144-14M40-E

Click to Enlarge

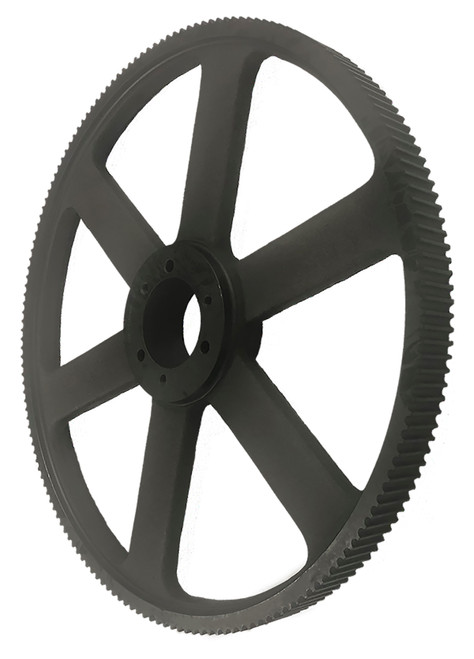

F144-14M40-E, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F144-14M40-E Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number F144-14M40-E
Teeth 144
Tooth Style HTD 14mm
For Belt Width (mm) 40.000
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore (in) E
Pitch Diameter (in) 25.264
Outside Diameter (in) 25.154
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.875
Unit System Inch
Bushing E
Max. Bore (in) 3.500
Weight (lb) 80.00
Part Number Cross Reference F144-14M40-E
