F168-8MX21-SF, Timing Pulley

F168-8MX21-SF

Click to Enlarge

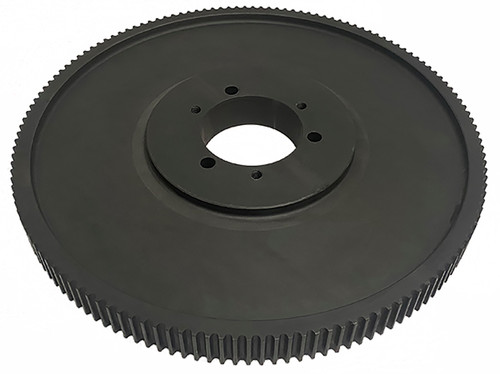

F168-8MX21-SF, Timing Pulley, Cast Iron, Black Oxide

B&B Manufacturing carries F168-8MX21-SF to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F168-8MX21-SF
Teeth	168
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	C-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	16.843
Outside Diameter (in)	16.780
Face Width (in)	1.203
Overall Length (in)	2.000
Hub Diameter (in)	33.800
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
P.D. (mm)	428.00
O.D. (mm)	426.20
A (in)	15.375
B (in)	6.375
C (in)	1.200
D (in)	1.250
F (in)	1.2
M (in)	0.05
MOQ	1
Weight (lb)	33.80
Part Number Cross Reference	F8M-168S-21, F8MX168S21-SF, 168G-8M-21-SF, 20958042, F8MX-168S-21 SF FIN FAN, F8MX168S21-SF, F168-8MX21-SF, 482204, F168-8MX21-SF
