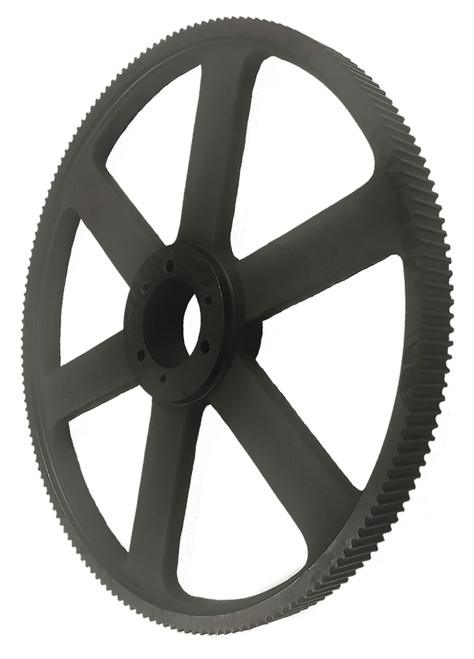

F192-14M40-E, Timing Pulley

F192-14M40-E - Cast Iron Powerhouse®HTD® Pulleys

Product Details for F192-14M40-E

Comparable to: F192-14M40-E, F192-14MGT-40-E, F192-14M-40-E, 201821

F192-14M40-E, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F192-14M40-E Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F192-14M40-E
Teeth 192
Tooth Style HTD 14mm
For Belt Width (mm) 40.000
Type A3
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore (in) E
Pitch Diameter (in) 33.686
Outside Diameter (in) 33.576
Face Width (in) 2.130
Overall Length (in) 2.130
Hub Diameter (in) 109.000
Min. Bore (in) 0.875
Unit System Inch
Bushing E
Max. Bore (in) 3.500
Weight (lb) 109.00
Part Number Cross Reference F192-14M40-E, F192-14MGT-40-E, F192-14M-40-E, 201821
