F224-8MX21-E, Timing Pulley

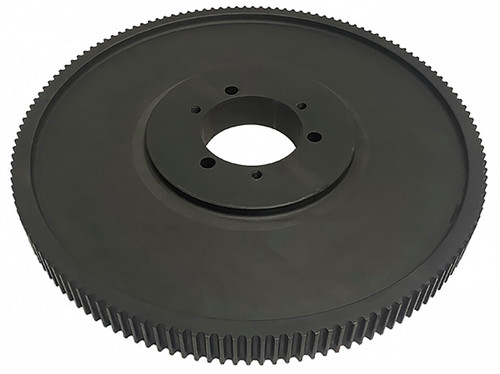

F224-8MX21-E - Cast Iron Powerhouse® MX Pulleys

F224-8MX21-E

F224-8MX21-E - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

F224-8MX21-E, Timing Pulley, Cast Iron, Black Oxide

B&B Manufacturing carries F224-8MX21-E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F224-8MX21-E
Teeth 224
Tooth Style 8MX
For Belt Width (mm) 21.00
Type C-3
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 22.457
Outside Diameter (in) 22.394
Face Width (in) 1.203
Overall Length (in) 2.000
Hub Diameter (in) 50.100
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 570.00
O.D. (mm) 568.80
A (in) 21.250
B (in) 7.500
C (in) 1.200
D (in) 1.625
F (in) 1.2
M (in) 0.425
MOQ 1
Weight (lb) 50.10
Part Number Cross Reference F8M-224S-21, F8MX224S21-E, 224G-8M-21-E, F8MX-224S-21 E FIN FAN, F8MX224S21-E, F224-8MX21-E, 482206, F224-8MX21-E
