F29-14M55-SK, Timing Pulley

F29-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F29-14M55-SK

F29-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

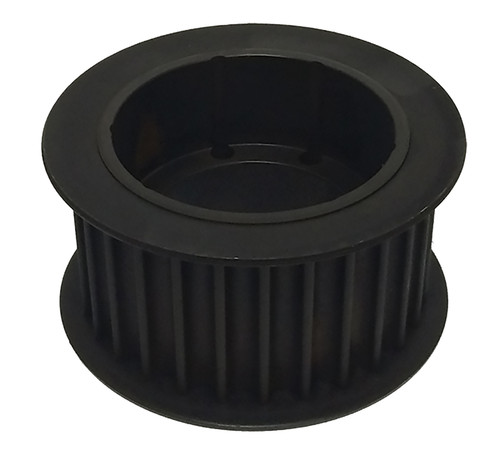

F29-14M55-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F29-14M55-SK to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F29-14M55-SK
Teeth 29
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.088
Outside Diameter (in) 4.978
Flange Diameter (in) 5.760
Face Width (in) 2.750
Overall Length (in) 2.750
Hub Diameter (in) 5.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 129.00
O.D. (mm) 126.40
A (in) 3.910
C (in) 2.440
D (in) 1.250
F (in) 2.75
M (in) 1.5
MOQ 1
Weight (lb) 6.20
Part Number Cross Reference F29-14MGT-55-SK, P29-14M-55, F29-14M55-SK, F29-14M55-SK
