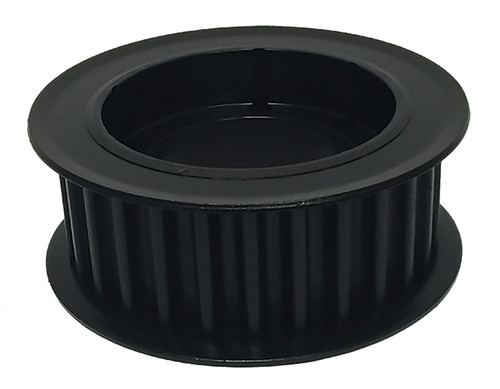

F29-14MX37-SK, Timing Pulley

F29-14MX37-SK - Ductile Iron Powerhouse® MX Pulleys

Product Details for F29-14MX37-SK

Comparable to: F29-14MX37-SK, F14M-29S-

F29-14MX37-SK, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F29-14MX37-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F29-14MX37-SK
Teeth 29
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.088
Outside Diameter (in) 4.978
Flange Diameter (in) 5.562
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 4.700
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Weight (lb) 5.19
Part Number Cross Reference F29-14MX37-SK, F14M-29S-
