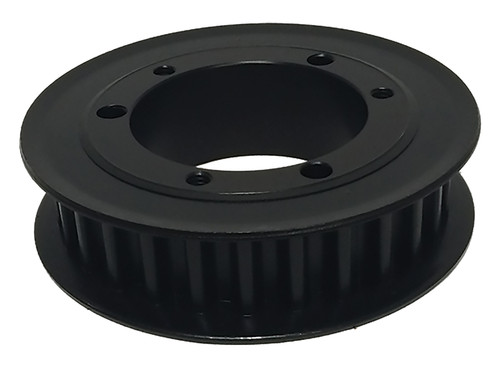

F30-14MX20-SK, Timing Pulley

F30-14MX20-SK

Click to Enlarge

F30-14MX20-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F30-14MX20-SK to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F30-14MX20-SK
Teeth	30
Tooth Style	14MX
For Belt Width (mm)	20.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.263
Outside Diameter (in)	5.153
Flange Diameter (in)	5.760
Face Width (in)	1.359
Overall Length (in)	1.359
Hub Diameter (in)	4.800
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	134.00
O.D. (mm)	130.90
A (in)	3.930
C (in)	1.040
D (in)	1.360
F (in)	1.36
M (in)	0.11
MOQ	1
Weight (lb)	4.78
Part Number Cross Reference	F14M-30S-20, F14MX30S20-SK, 30G-14M-20-SK AXIAL FAN SPROCKET/IDLER, 20337483, F14MX-30S-20-SK FIN FAN, F14MX30S20-SK, F30-14MX20-SK, 482209, F30-14MX20-SK
