F30-14MX37-SK, Timing Pulley

F30-14MX37-SK - Ductile Iron Powerhouse® MX Pulleys

Product Details for F30-14MX37-SK

Comparable to: F30-14MX37-SK, F14M-30S-

Click to Enlarge

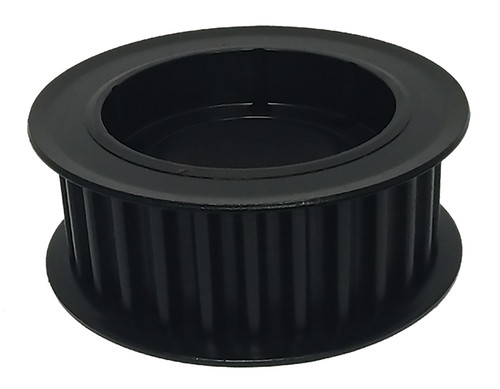

F30-14MX37-SK, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F30-14MX37-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number F30-14MX37-SK
Teeth 30
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.263
Outside Diameter (in) 5.153
Flange Diameter (in) 5.763
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 5.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Weight (lb) 5.86
Part Number Cross Reference F30-14MX37-SK, F14M-30S-
