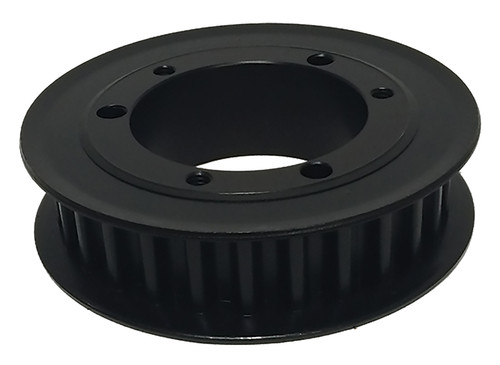

F33-14MX20-SK, Timing Pulley

F33-14MX20-SK

Click to Enlarge

F33-14MX20-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F33-14MX20-SK to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	F33-14MX20-SK
Teeth	33
Tooth Style	14MX
For Belt Width (mm)	20.00
Type	AF-1
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.790
Outside Diameter (in)	5.680
Flange Diameter (in)	6.465
Face Width (in)	1.359
Overall Length (in)	1.359
Hub Diameter (in)	6.300
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
P.D. (mm)	147.00
O.D. (mm)	144.30
A (in)	4.410
C (in)	1.040
D (in)	1.360
F (in)	1.36
M (in)	0.11
MOQ	1
Weight (lb)	6.51
Part Number Cross Reference	F14M-33S-20, F14MX33S20-SK, F14MX-33S-20 SK FIN FAN, F14MX33S20-SK, F33-14MX20-SK, 482212, F33-14MX20-SK
