F35-14M55-SK, Timing Pulley

F35-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F35-14M55-SK

F35-14M55-SK - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

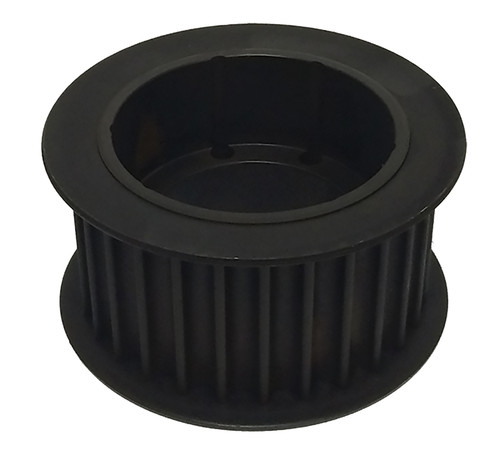

F35-14M55-SK, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F35-14M55-SK to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F35-14M55-SK
Teeth 35
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 6.141
Outside Diameter (in) 6.031
Flange Diameter (in) 6.816
Face Width (in) 2.750
Overall Length (in) 2.750
Hub Diameter (in) 8.800
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 156.00
O.D. (mm) 153.20
A (in) 4.750
C (in) 2.440
D (in) 1.250
E (in) 0.75
F (in) 2.75
M (in) 0.75
MOQ 1
Weight (lb) 10.10
Part Number Cross Reference F35-14MGT-55-SK, F35-14M55-SK, F35-14M55-SK
