F38-8MX21-SH, Timing Pulley

F38-8MX21-SH - Ductile Iron Powerhouse® MX Pulleys

Product Details for F38-8MX21-SH

Comparable to: F38-8MX21-SH, F8M-38S-

Click to Enlarge

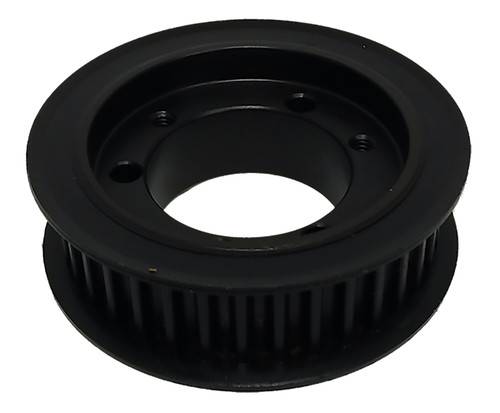

F38-8MX21-SH, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F38-8MX21-SH Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number F38-8MX21-SH
Teeth 38
Tooth Style GT2 8mm
For Belt Width (mm) 21.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.810
Outside Diameter (in) 3.747
Flange Diameter (in) 4.156
Face Width (in) 1.203
Overall Length (in) 1.203
Hub Diameter (in) 2.100
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
Max. Bore (in) 1.6875
Weight (lb) 1.98
Part Number Cross Reference F38-8MX21-SH, F8M-38S-
