F44-14M55-E, Timing Pulley

F44-14M55-E - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F44-14M55-E

F44-14M55-E - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

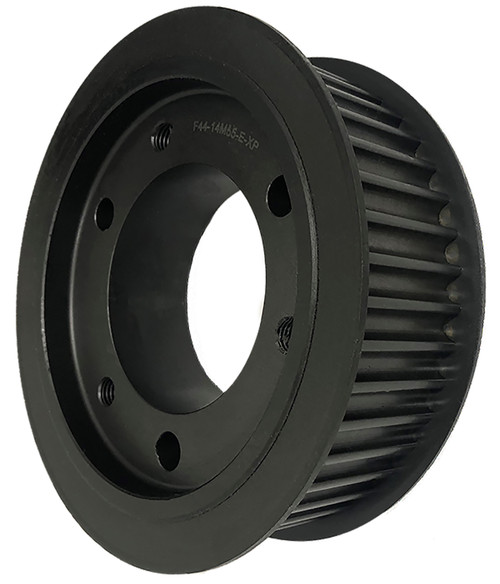

F44-14M55-E, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F44-14M55-E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F44-14M55-E
Teeth 44
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 7.720
Outside Diameter (in) 7.610
Flange Diameter (in) 8.395
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 196.00
O.D. (mm) 193.30
A (in) 6.250
C (in) 2.440
D (in) 1.250
E (in) 0.56
F (in) 2.75
M (in) 0.56
MOQ 1
Weight (lb) 17.20
Part Number Cross Reference P44-14M-55, F44-14M55-E, F44-14M55-E
