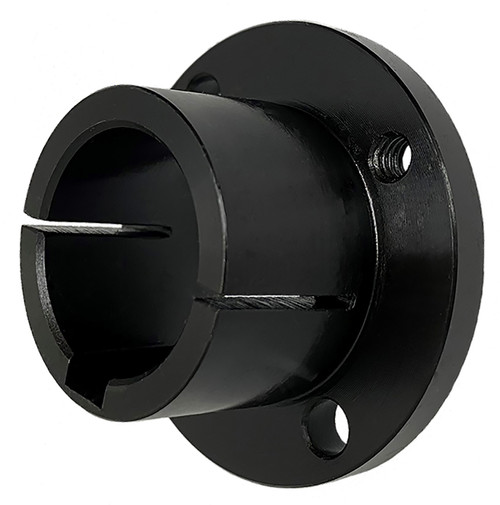

Hx32mm, Split Taper Bushing

Hx32mm

Hx32mm, Split Taper Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Hx32mm Bushings in a large variety of bore sizes from stock.

Product Number	Hx32mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	32 mm Finished Bore
Bore (mm)	32.00
Min. Bore (in)	0.375
Unit System	Metric
Bushing	H
B (in)	1.625
D (in)	2.500
D	1.375
d	0.375
E (in)	1
F (in)	0.875
H (in)	2.500
L (in)	1.25
T (in)	1.000
U (in)	0.250
V (in)	2.000
X (in)	0.875
Y (in)	0.188
Torque Capacity (lb/in)	95
Number & Screw Size	2 - (1/4 x 3/4)
MOQ	1
Weight (lb)	0.55
Part Number Cross Reference	QT 32MM, H 32 mm, QTX32MM BUSHING, 20181513, HX32MM 10X3.3MM KW METRIC HDW, QT32MM, HX32MM, Hx32mm, 117358, Hx32mm
Cap Screw Quantity	2
