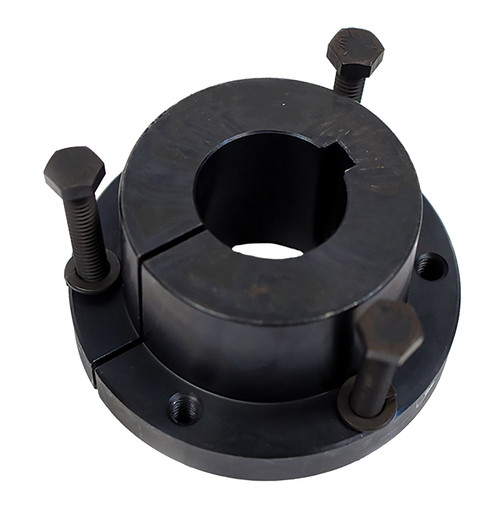

Jx90mm, QD Bushing

Jx90mm

Jx90mm, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Jx90mm Bushings in a large variety of bore sizes from stock.

Product Number	Jx90mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	90 mm Finished Bore
Bore (mm)	90.00
Min. Bore (in)	1.5
Unit System	Metric
Bushing	J
A (in)	1.000
B (in)	5.148
D (in)	7.250
E (in)	3.5
F (in)	3.188
L (in)	4.5
Torque Capacity (lb/in)	55,000
Bolt Circle (in)	6.250
Number & Screw Size	3 - (5/8-11 x 4-1/2)
MOQ	1
Weight (lb)	21.00
Part Number Cross Reference	J 90 mm, JX90MM BUSHING, 20181333, J X 90MM-KW BUSHING, J90MM, JX90MM, Jx90mm, 120165, Jx90mm
Cap Screw Quantity	3
