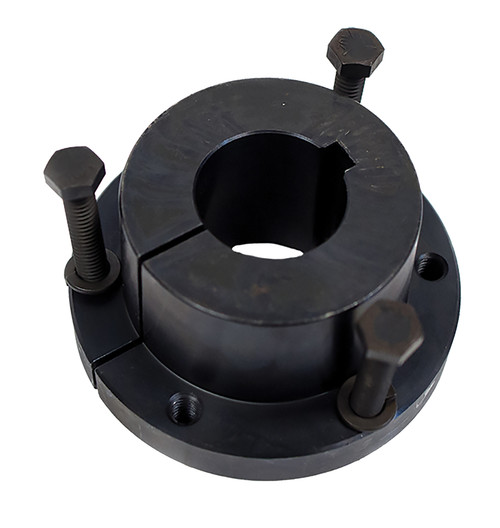

Mx5, QD Bushing

Mx5, M-5, 20181374

Mx5

Mx5, QD Bushing, Ductile Iron 65-45-12, Black Phosphate,

B&B Manufacturing carries Mx5 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number	Mx5
Material	Ductile Iron 65-45-12
Finish	Black Phosphate
Bore Type	Finished Bore
Bore (in)	5.000
Bore Description	5 Inch Finished Bore
Min. Bore (in)	2
Unit System	Inch
Bushing	M
A (in)	1.250
B (in)	6.500
D (in)	9.125
E (in)	5.5
F (in)	5.188
L (in)	6.75
Torque Capacity (lb/in)	125,000
Bolt Circle (in)	7.875
Number & Screw Size	4 - (3/4-10 x 6-3/4)
MOQ	1
Weight (lb)	47.80
Part Number Cross Reference	M 5., M.5, M 5, M-5, 20181374, M X 5-KW BUSHING, M5, M-5, MX5, M-5, Mx5, 119934, Mx5
Cap Screw Quantity	4

Related Products

Comparable to: M 5., M.5, M 5, M-5, 20181374, M X 5-KW BUSHING, M5, M-5, MX5, M-5, Mx5, 119934, Mx5
