QD112-5M-15, Timing Pulley

QD112-5M-15

Click to Enlarge

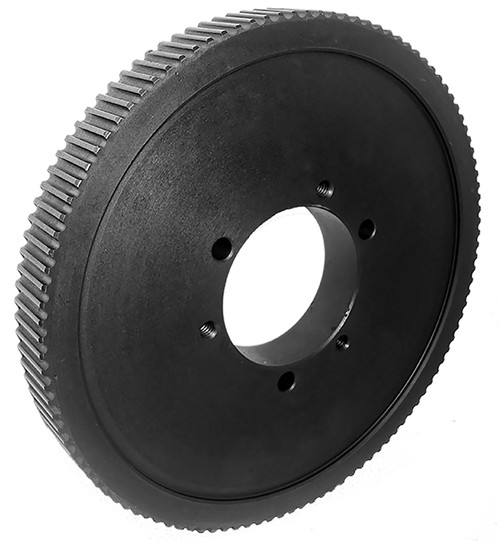

QD112-5M-15, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD112-5M-15 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD112-5M-15
Teeth	112
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	C-1
Material	Ductile Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	7.018
Outside Diameter (in)	6.973
Face Width (in)	0.840
Overall Length (in)	0.840
Hub Diameter (in)	0.676
Min. Bore (in)	0.5
Unit System	Metric
Bushing	SDS
P.D. (mm)	178.00
O.D. (mm)	177.10
MOQ	1
Weight (lb)	6.90
Part Number Cross Reference	P112-5M-15-SDS, P1125M15-SDS, 5M112QD15.SDS, P112-5M-15-SDS, 20182192, P112-5M-15-SDS HTD SPKT, P1125M15, P112-5M-15-SDS, P112-5M-15, P1125M15SDS, QD112-5M-15, 114653, QD112-5M-15
